36" Induction downdraft cooktop black glass

Name: 36" Induction downdraft cooktop black glass
Brand: Bertazzoni

Master Series

PE364IDDNET

This 36 inch induction downdraft cooktop integrates powerful induction cooking and innovative ventilation. It is equipped with 4 cooking zones and each area has 9 power levels plus booster. A intuitive touch-through-glass user interface allows for instantaneous cooking and aspiration setting. The 2 bridge areas allow to combine two cooking zones to create a single larger zone for large cookware.

The integrated hood, available in suction or filtering mode, has 5 speed selections from 160 to 400 CFM and automatic control and is 100% safe against water leaks. The aluminum mesh grease filter can are dishwasher-safe. Ultra-quiet performance rated at 1.5 sones (lowest setting).

Specifications

Features

Size 36 in
Type induction downdraft hood
Controls multi slider
Worktop design glass
Worktop type induction
Number of induction zones 4

Worktop
- Controls multi slider
- Size 36 in
- Number of induction zones 4
- Worktop type induction
- Worktop design glass
- Power levels 9 + booster
- Timer yes
- Residual heat indicator yes
- Safety induction cooktop child lock residual heat indicator automatic switch off pot detection
Cooking zones
- Induction front left (⌀ 7 15/32 in x 8 21/32 in) 2 100 W - 3 700 W
- Induction back left (⌀ 7 15/32 in x 8 21/32 in) 2 100 W - 3 700 W
- Induction front right (⌀ 7 15/32 in x 8 21/32 in) 2 100 W - 3 700 W
- Induction back right (⌀ 7 15/32 in x 8 21/32 in) 2 100 W - 3 700 W
Hood
- Hood type down draft
- Speed 4 speeds
- Filters type aluminum filter
- Max extraction power 400 CFM
- Hood special functions filter saturation alarm
- Overflow security yes
Technical specifications
- Absorbed current (A) 32
- Power Limitation (kW) power limitation
- Electrical supply 208/240 V - 60 Hz
- Power rating 7400 W
- Power connection hardwired
- Certification UL

Dimensions

36 Induction downdraft cooktop black glass | Bertazzoni

Download

PE364IDDNET Specification Sheet

Specifications Sheets
- PE364IDDNET Specification Sheet
Manuals
- PE364IDDNET User & Installation Manual
Design Guide and Installation
- PE364IDDNET Installation Drawing

Highlights

Powerful, efficient, elegant

Induction zones

The induction cooking zones with precise heating controls and sensors include the Booster function for ultra-fast boiling. The multi-zone technology allows to merge multiple heating zones into one, making the cooktop suitable for the largest variety of cookware types and sizes.

9 power levels + booster

Precise variable controls cover all cooking needs, from delicate simmer to intense high heat. The precision sensors prevent boil overs and stop heating after the removal of cookware.

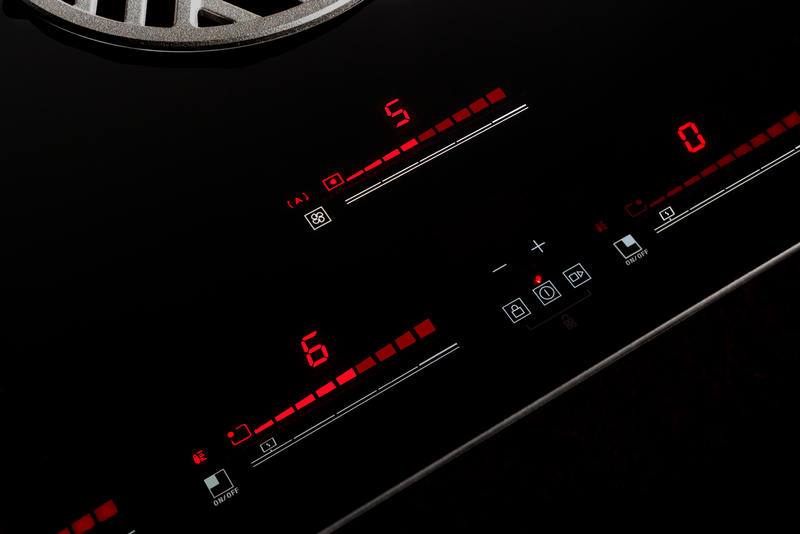

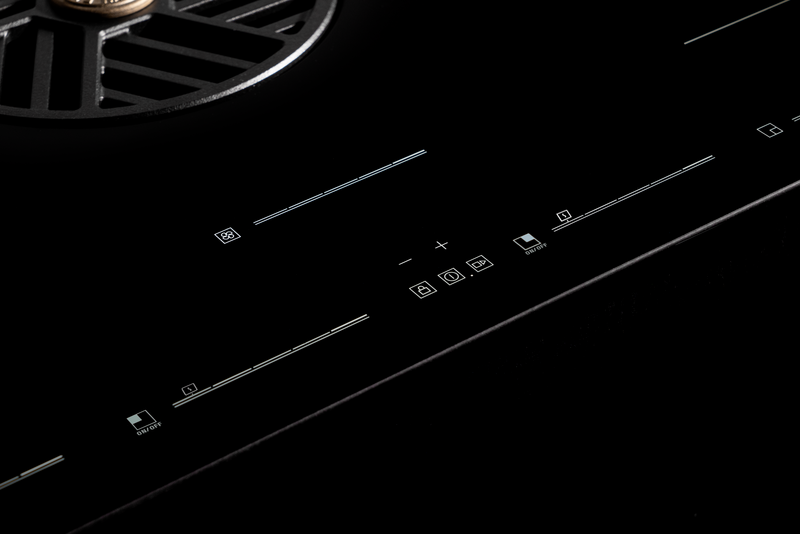

Touch-through-glass digital controls

Each induction heating zone has a dedicated user interface with timer, clearly displaying the selected cooking level.

Find out more

2 appliances in 1

Integrated ventilation

The dedicated downdraft ventilation control in the cooktop surface allows to set calibrated air venting with 10 speed levels and an auto setting.

Vented or recirculated installation

The integrated downdraft function can be operated in re-circulation or outside venting mode. The engineering of the air intake features a water leak protection system.

Distinctive design

cover design is definitely Bertazzoni. The iconic embossed logo medallion embossed in the air intake cover represents the perfect integration between performance and style.
